Palm OTDR(SP-OTDR16)

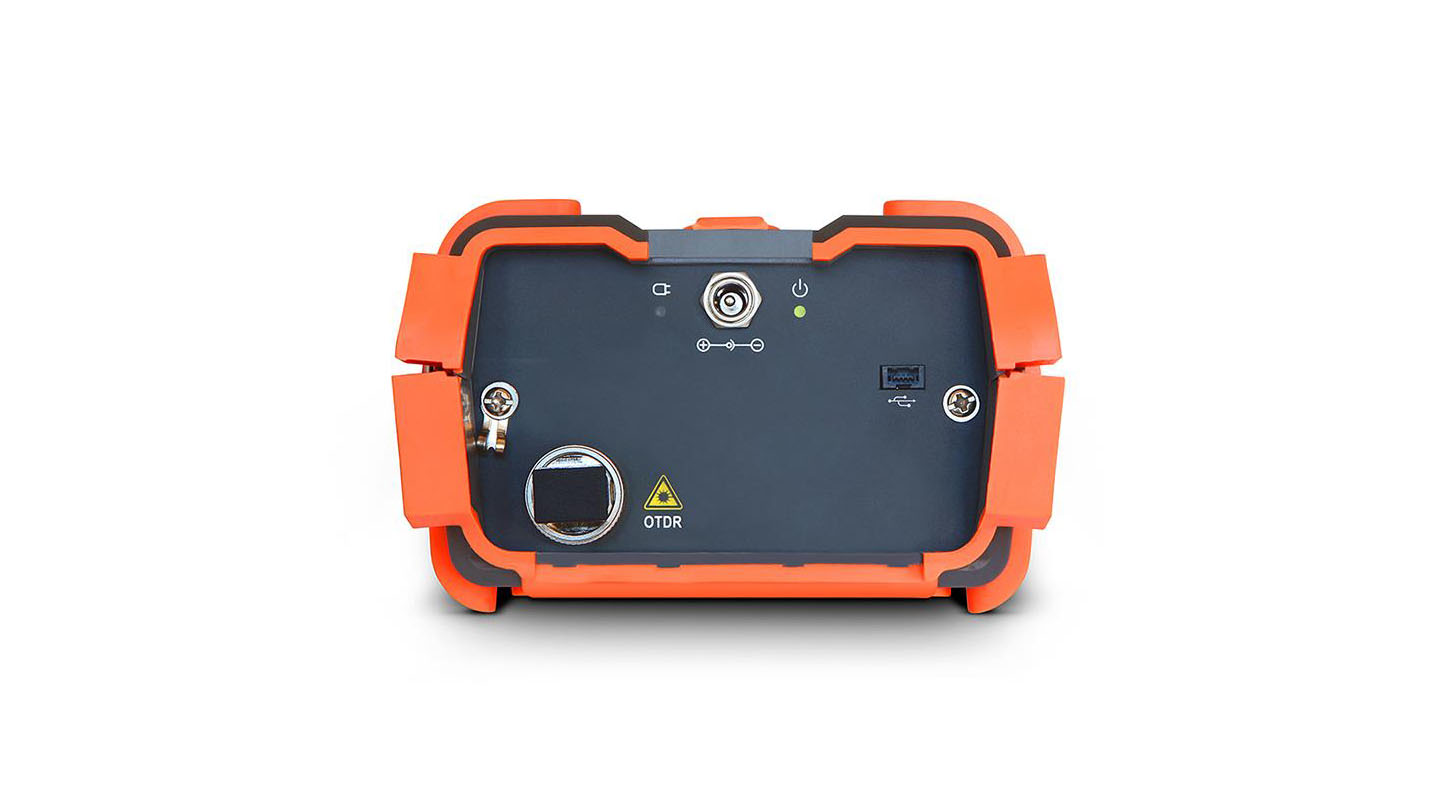

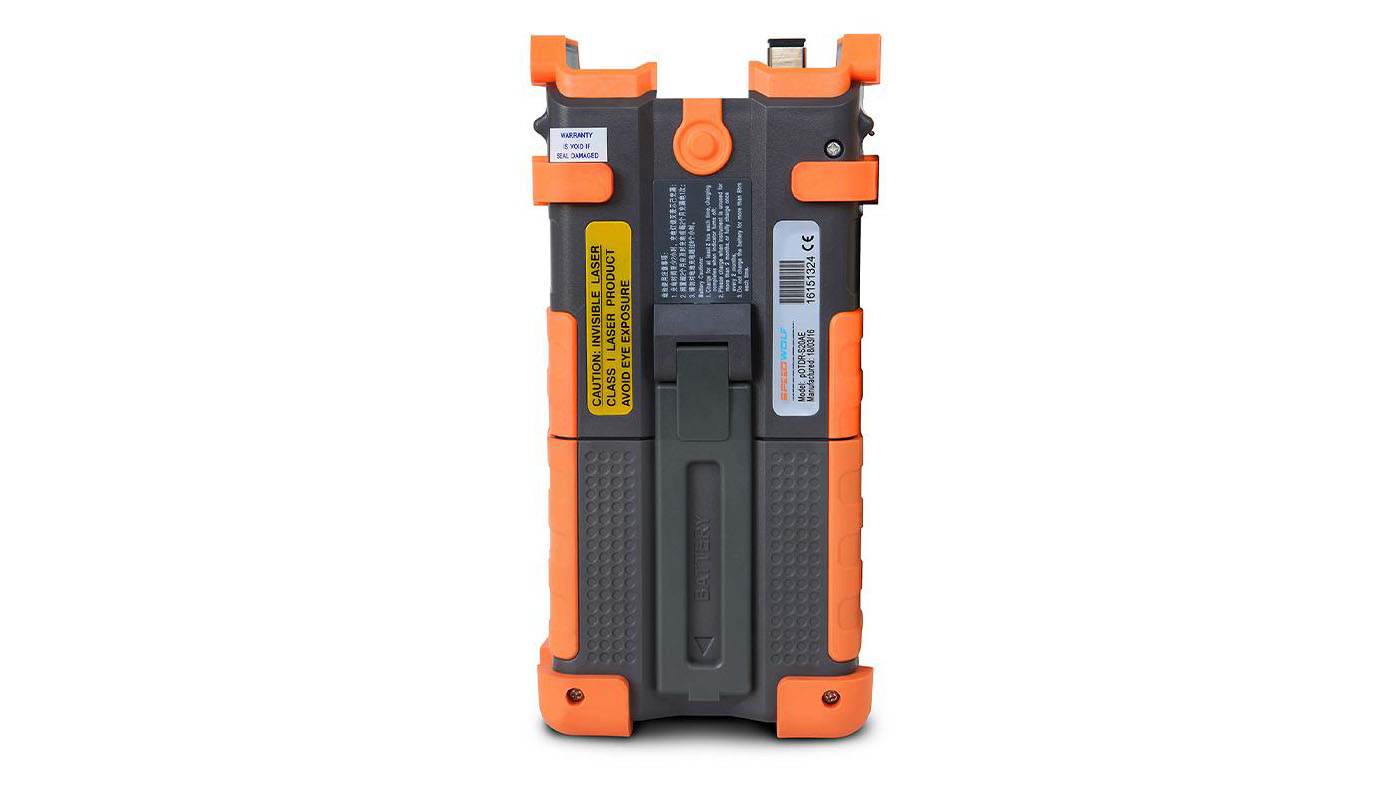

The compact Palm OTDR SP-OTDR16 now offers even more testing capacities, flexibility and value with combination of 850/1300/1310/1490/1550/1625/1650nm (Mono/double/triple wavelength) OTDR, 1310/1490/1550nm PON Power Meter, Stabilized Laser Source and VFL. The OTDR wavelengths cover the applications of regular end-to-end fiber characterization (1310/1550nm), premise/enterprise LAN testing (850/1300nm), FTTx fiber link construction verification (1490nm) and PON live fiber troubleshooting (1625/1650nm with filter). The integrated PON Power Meter can perform in-service testing of all PON signals (1310/1490/1550nm) on any spot of the network featuring pass-through design and burst mode support. SP-OTDR16 is your ultimate solution to meet various testing requirements of entire fiber network.


         Product Features

  • Comprehensive fiber applications, ideal for LAN/WAN/FTTx certification & trouble-shooting.
  • SM: 1310/1490/1550, 1625/1650nm (with filter), up to 50dB
  • MM: 850/1300nm, 21/24dB
  • Fault locating, fiber length/loss measurement, connector/ splice/ splitter/ macro bend/fiber-end detection
  • Built-in PON Power Meter for Triple-play live measurement
  • Optional Stabilized Laser Source, SM/MM Power Meter and VFL
  • FTTx in-service testing/ Testing through splitter: (1625/1650nm with filter)
  • Splitter & fiber-end identifiable
  • Auto/Manual(2-point/5-point)/Averaging/Real-time test
  • Pass/Fail assessment and ORL test function


PARAMETER PACKAGES DOWNLOAD CONTACT US

PARAMETER

Model
Wavelength
(±20nm)
Dynamic Range
EDZ
(m)
ADZ
(m)
Basic
Advanced
SP-OTDR16-MAE
SP-OTDR16-MAE-VPSI
850/1300
21/24dB
1.5
5
SP-OTDR16-SAE
SP-OTDR16-SAE-VPSI
1310/1550
32/30dB
1.8
5
SP-OTDR16-SBE
SP-OTDR16-SBE-VPSI
1310/1550
35/34dB
1.5
5
SP-OTDR16-SC/N
SP-OTDR16-SC/N-VPSI
1310/1550
40/38dB
0.8
4.5
SP-OTDR16-SD/N
SP-OTDR16-SD/N-VPSI
1310/1550
45/43dB
0.8
4.5
SP-OTDR16-SF
SP-OTDR16-SF-VPSI
1310/1550
50/48dB
0.8
4.5
SP-OTDR16-SC/P
SP-OTDR16-SC/P-VPSI
1310/1490/1550
38/37/37dB
0.8
4.5
SP-OTDR16-SC/X
SP-OTDR16-SC/X-VPSI
1310/1550/1625(4)
38/37/37dB
0.8
4.5
SP-OTDR16-P1C
SP-OTDR16-P1C -SI
1625(4)
37dB
0.8
4.5
SP-OTDR16-P3C
SP-OTDR16-P3C-SI
1310/1550/1625(4)
38/37/37dB
0.8
4.5
Selectable Range (Km) 0.1,0.3,0.5,1.3,2.5,5,10@850nm; 0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm; 0.3,1.3,2.5,5,10,20,40,80,120,160,240@others
Pulse Width 10ns,30ns,100ns,300ns,1µs@850nm; 10ns,30ns,100ns,300ns,1µs,2.5µs@1300nm; 5ns,10ns, 30ns,100ns, 300ns,1µs,2.5µs,10µs,20µs@others
Averaging Time Quick, 15s, 30s, 1min, 2min, 3min
Distance Measure Accuracy ±(1m + 5×10-5×distance + sampling space)
Attenuation Detect Accuracy ±0.05 dB/ dB
Reflection Detect Accuracy ±4 dB
Data Storage 1000 records
Connectivity USB
Connector FC/PC(Interchangeable SC, ST)
Power Supply NiMH Battery / AC Adapter
Battery Life 8 hrs continuous operation, 20 hrs standby (on one charge); recharging time < 4 hrs
Operating Temperature -20℃ ~ 50℃
Storage Temperature -40℃ ~ 70℃
Relative Humidity 0~95% (non-condensing)
Weight 1kg (2.2 lbs)
Dimensions (H×W×T) 220×110×70mm (8.7×4.3×2.7 inch)

PACKAGES

No
Name
Qty
1
OTDR(SP-OTDR16)
1 set
2
FC/PC connector
1 pc
3
NiMH battery
1 pc
4
USB Data cable
1 pc
5
AC adaptor
1 pc
6
Soft carrying case
1 pc
7
Warranty card
1 pair
8
Quick reference guide
1 pc

DOWNLOAD

Model
Wavelength
(±20nm)
Dynamic Range
 DownLoad
Basic
Advanced
SP-OTDR16-MAE
SP-OTDR16-MAE-VPSI
850/1300
21/24dB
SP-OTDR16-SAE
SP-OTDR16-SAE-VPSI
1310/1550
32/30dB
SP-OTDR16-SBE
SP-OTDR16-SBE-VPSI
1310/1550
35/34dB
SP-OTDR16-SC/N
SP-OTDR16-SC/N-VPSI
1310/1550
40/38dB
SP-OTDR16-SD/N
SP-OTDR16-SD/N-VPSI
1310/1550
45/43dB
SP-OTDR16-SF
SP-OTDR16-SF-VPSI
1310/1550
50/48dB
SP-OTDR16-SC/P
SP-OTDR16-SC/P-VPSI
1310/1490/1550
38/37/37dB
SP-OTDR16-SC/X
SP-OTDR16-SC/X-VPSI
1310/1550/1625(4)
38/37/37dB
SP-OTDR16-P1C
SP-OTDR16-P1C -SI
1625(4)
37dB
SP-OTDR16-P3C
SP-OTDR16-P3C-SI
1310/1550/1625(4)
38/37/37dB
