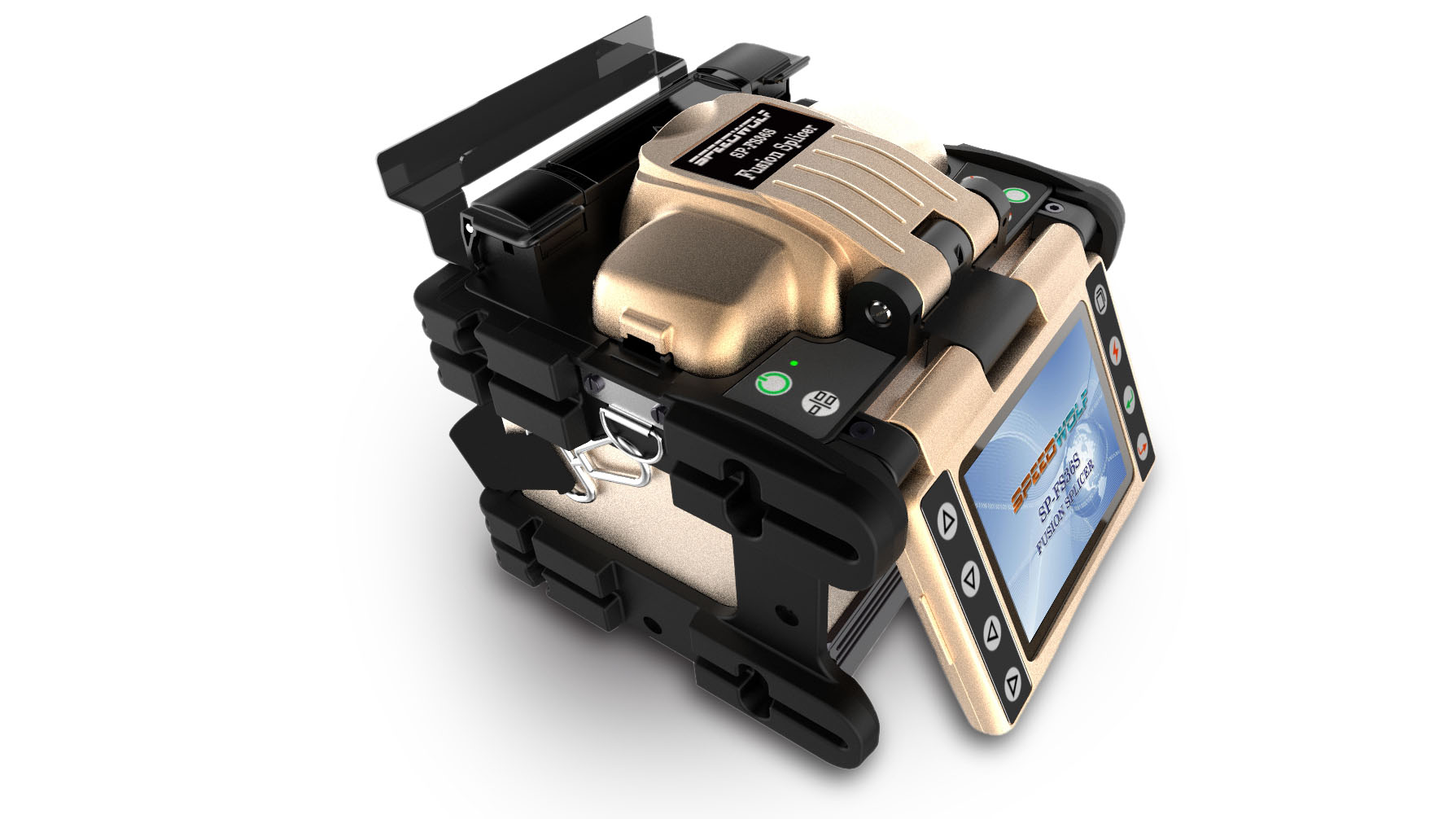

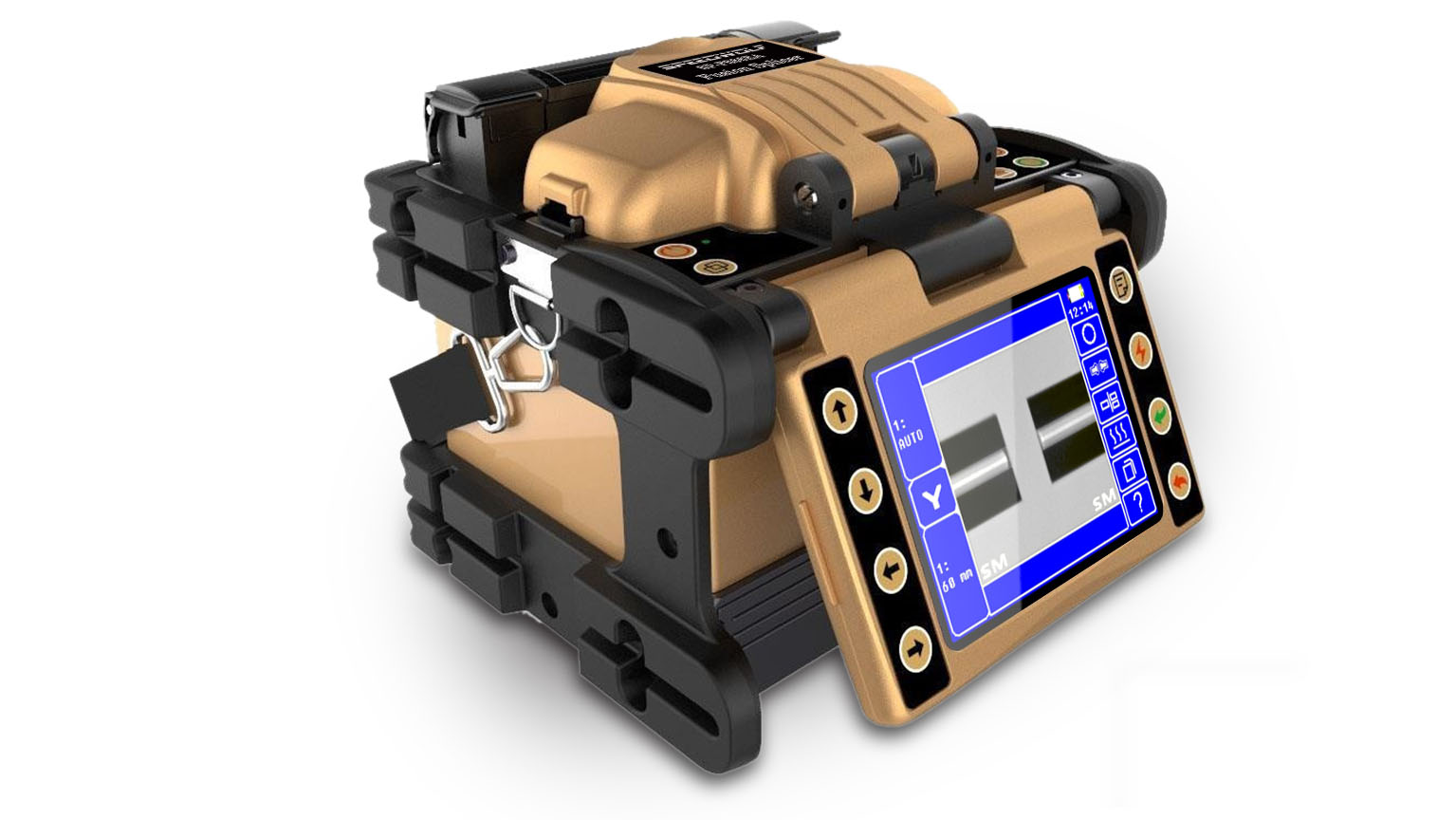

SP-FS36S fiber optic fusion splicer is designed as a highly flexible instrument with 6-motor precise micron level control and splice loss lower than 0.02dB for G.652 fiber. Equipped with removable universal fiber holders (250μm/900μm/patch cord/FTTx indoor fiber etc.), SOC holder and internal thermometer/barometer, SP-FS36S can be deployed anywhere. Fast 5s startup, 9s splicing and automatic heating features enable the splicer an efficient tool for large volume splicing operation during fiber installation and maintenance.


         Product Features

  • 6 motors core alignment for precise high-quality splicing
  • SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing
  • One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fiber splicing
  • Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation
  • Auto and manual splicing
  • Splicing≤9s, heating≤25s (time and power adjustable)
  • Arc counter prompts electrode change upon usage
  • Auto arc optimization,Auto heating
  • Dual V-groove for perfect fiber alignment

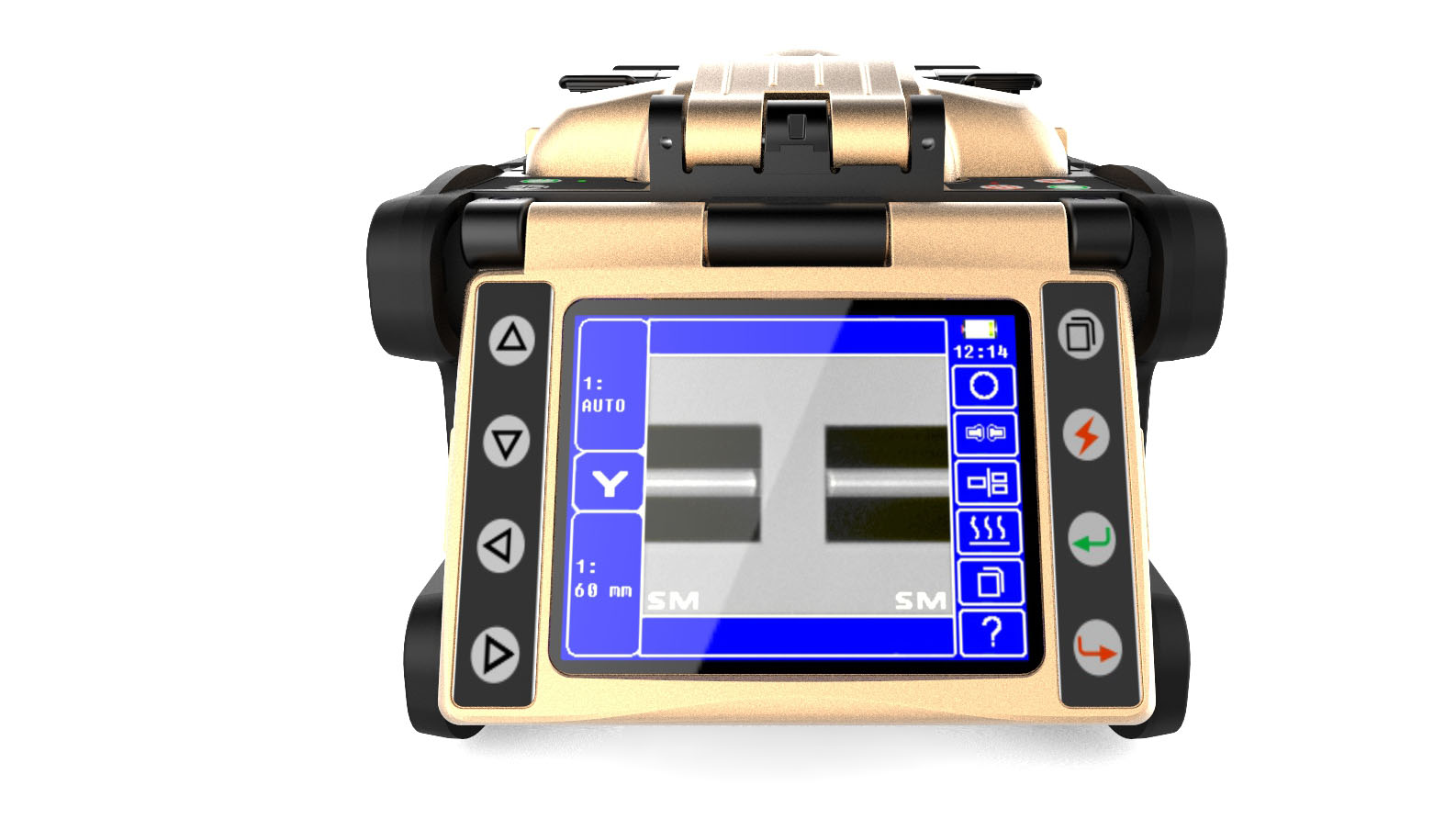

  • X/Y and X+Y display for clear fiber core image


PARAMETER PACKAGES DOWNLOAD CONTACT US

PARAMETER

Model SP-FS36S Optical Fiber Fusion Splicer
Fiber Type SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF
Protection Sleeve 40mm - 60mm
Splicing Principle Arc
Alignment 6 motors core alignment
Splice Control Auto and manual splicing
Arc Optimization Yes
Display Mode X, Y, X+Y
User Interface Graphical interface, multiple language support
Splice Result Auto splice result (Loss) calculation and display
Data 5000 splice records (CSV format), 100 screenshots
Data Port USB, driver-free
Fiber Diameter Cladding: 80~150μm, coating: 100~1000μm
Cleave Length ≤16mm
Splice Loss MMF ≦ 0.01dB (Typical); SMF/BIF ≦ 0.02dB (Typical); DSF/NZDSF/EDF ≦ 0.04dB (Typical)
Return Loss >60dB
Splice Time ≤9s
Heating Time ≤25s, adjustable
Zoom 200x (X or Y)
Electrode Life ≥5000 splices
Tension Test ≥2N
Start-up Time 5s
Power Supply 220V±10%, 50Hz; Rechargeable lithium battery
Battery Life ≥200 splicing and heating
Chanrging Time ≤4 hours
Size 125x125x135mm (L x W x H)
Weight 1.7Kg (with battery)
Work Temperature -20℃~+55℃

PACKAGES

No Name Qty
1 SP-FS36S Fusion Splicer 1 set
2 Fiber Cleaver 1 pcs
3 Fiber Stripper 1 pcs
4 AC Adatpor 1 pcs
5 Li Battery 1 pcs
6 Charger 1 pcs
7 Cooling Tray 1 pcs
8 User Manual CD 1 pcs
9 Carrying Case 1 pcs
10 4-in-1 Fiber holder 1 pcs
11 USB data cable 1 pcs

DOWNLOAD

Type
Typical splice time
Monitor
DownLoad
SP-FS36S
9S
3.5inch TFT LCD
